The following are examples of my
work done as Gallant Innovations for various clients.
Example
Drawings
I provide my clients with a copy of
the drawings in PDF format.
I also provide the 3D SolidWorks
solid models for use in CAM programming and 3D printing.
View
an example PDF assembly drawing (130K)
View
an example PDF brazement drawing (223K)
Spiritus Technologies,
Direct air carbon capture startup. Los Alamos, NM
TechSource,
Los Alamos, NM. I am providing mechanical design support for particle accelerators and neutron generators.
Hofstra Group,
Boston, MA
Triggered Spark Gap
Triggered Spark Gap Gas Controller
Triggered Spark Gap with Gas Controller
Modular Capacitor Busbar System
Modular Capacitor Busbar System
Modular Capacitor Busbar System
Linac Systems, Inc.,
Albuquerque, NM
RFI Cavities
(20” diameter x 36” long)

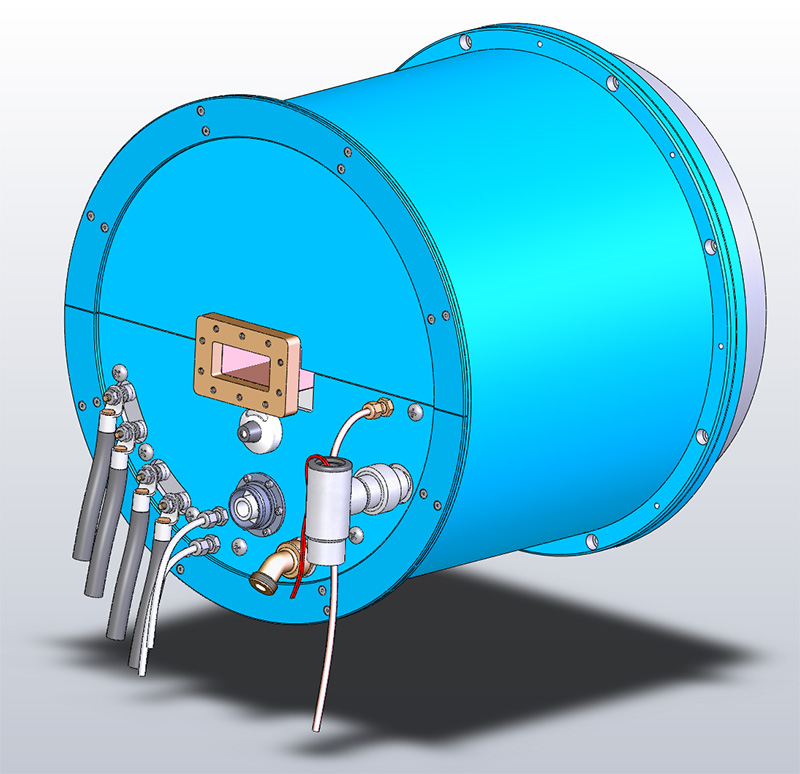

Ion Source (20” diameter)
Section View
|
|
JP Accelerator Works, Inc. |
- Project:
Buncher Cavity for the Spallation
Neutron Source Project (SNS) at Lawrence berkeley
National Laboratory
- $32,000.00
fabrication cost for each assembly. Total of four assemblies to be made.
- Deliverables:
3D SolidWorks part and assembly models, solid models for FEA, photo
rendered images for design review presentations and design reports, and
engineering/fabrication drawings
- This
project required 12 drawings with a total of 27 sheets
- 22.5"
O.D. x 5.1" wide Stainless Steel. Assembly weighs 312 pounds
- 4
assemblies to be built plus one aluminum test assembly
- Design
considerations needed for vacuum system design requirements
- Internally
routed water cooling channels
- Copper
plated cavity profile
- Tight
tolerances required on the cavity profile
- Cavity
is calibrated by changing the thickness of the removeable
.235" thick shims
PhotoWorks
rendered images
Aluminum Mock-up for Testing
Copper Plating Test Piece
200 MHz Amp

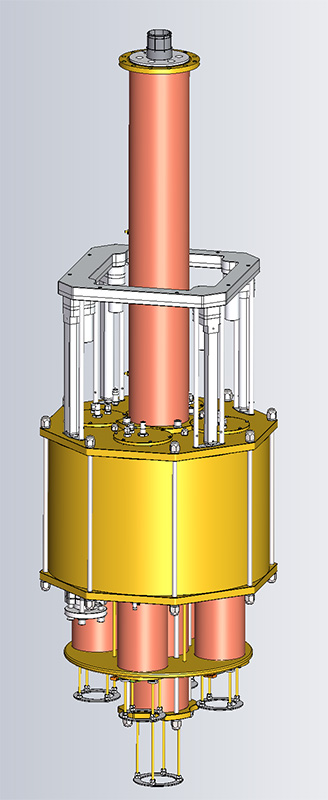

IPA (2X) and FPA (18” diameter)
Section View
540 KW 200 MHz Amp
(22” diameter, 6” diameter coax)
Section View
|
|
JP Accelerator Works, Inc. |
- Project:
Tuning Bars for the Drift Tube Linear Accelerator (DTL) at International Isotopes Incorporated,
Denton, Texas
- This
project required 4 drawings with a total of 6 sheets
- 1"
x 1.5" x 60" Stainless Steel
- Each
bar has a different height, length, and hole pattern
- Replaces
an earlier tuning bar design
- Internally
water cooled. A .250" dia. hole is gun drilled through the length of
the bars
- Design
considerations needed for vacuum system design requirements
- Each
bar and all components are copper plated
Close up PhotoWorks rendered image
of the tuning bar mounted to the tank

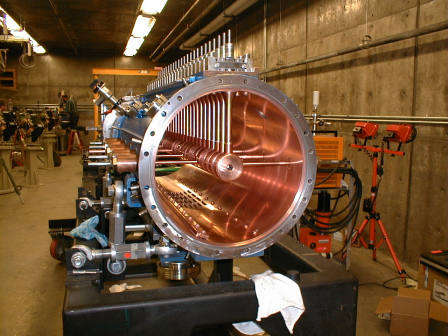

Photo of the earlier Tuning Bar design mounted to the tank
|
|
JP Accelerator Works, Inc. |
- Project:
Drive Loop for the Buncher Cavity at the Spallation
Neutron Source Project (SNS) at Lawrence berkeley
National Laboratory

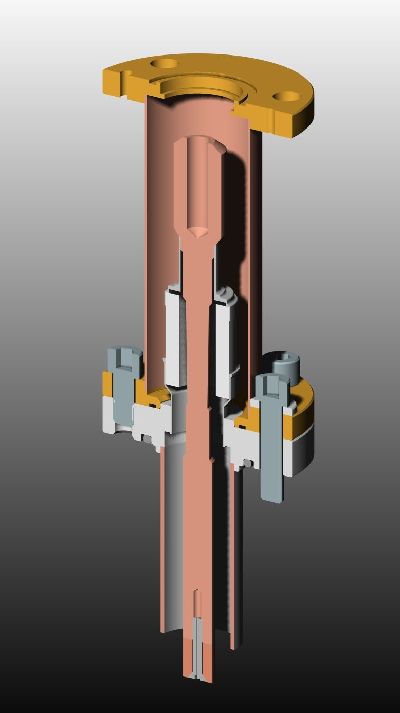

Drive Loop Assembly: Fabricated Assembly and Solidworks
Section View
|
|
JP Accelerator Works, Inc. |
- Project:
600 MHz Amplifier
600 MHz Amp
Coyote Creations
Santa Fe, NM
- Project:
graphics for a proposed sculpture fountain on the University of New
Mexico campus in Albuquerque, NM
- SolidWorks
3D solid models and images provided to aid visualization of the proposed
fountain to scale in the actual setting
- Digital
photos where taken at the site and the
SolidWorks models where overlaid on the images to the proper scale and
orientation
- Retaining
wall is 38' dia x 18" h
- Bronze
arches and bas-relief sculptures
- Tallest
arch is 15 feet tall

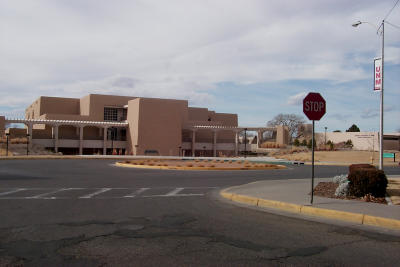

Original photo of the empty circular area for the proposed
sculpture fountain
The circular curb is 48 feet in diameter
View Walking West from the Library

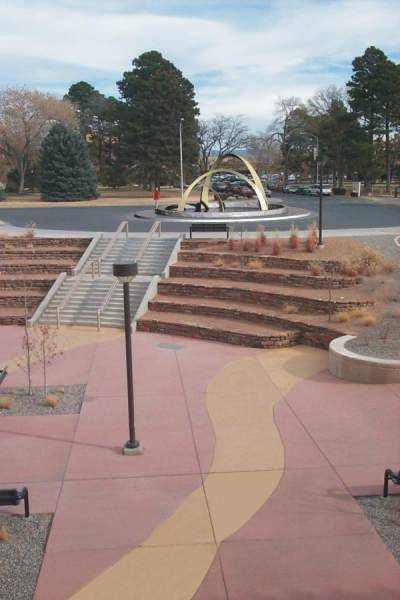

SolidWorks model overlaid on the photograph
Bas-Relief Figurative Sculptures and Water Sprays not Shown
View East from the Second Floor

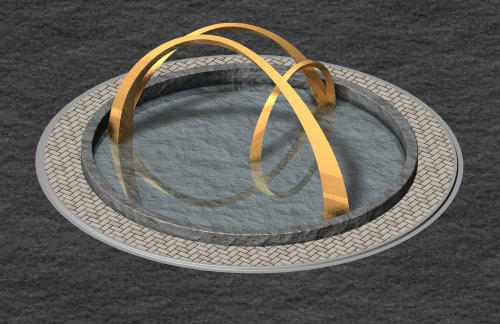

PhotoWorks
Rendered Image

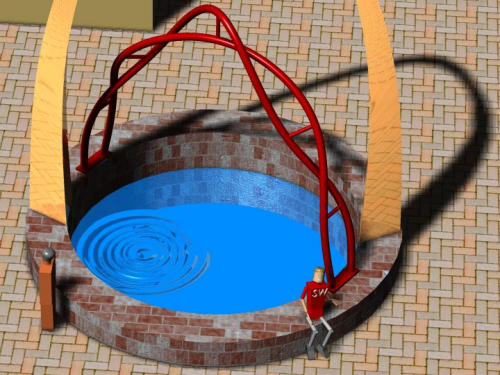

Experimenting with SolidWorks and PhotoWorks
